Finding Between Wire Bending Machines and Welding Machines: Which One Suits Your Needs?

In industrial manufacturing, wire processing plays a vital role across various industries. Whether it's construction, furniture, automotive, or electronics, complex structures often rely on wire forming and welding processes. With so many options available in the market for wire bending machines and welding machines, companies face the challenge of making the right investment. This article will guide you through the factors to consider, including equipment functions, application scenarios, and technological advantages, with insights from the products of Foshan Jinchun Mechanical Equipment Co.,Ltd.



1. Wire Bending Machines: The Core Equipment for Precision Forming

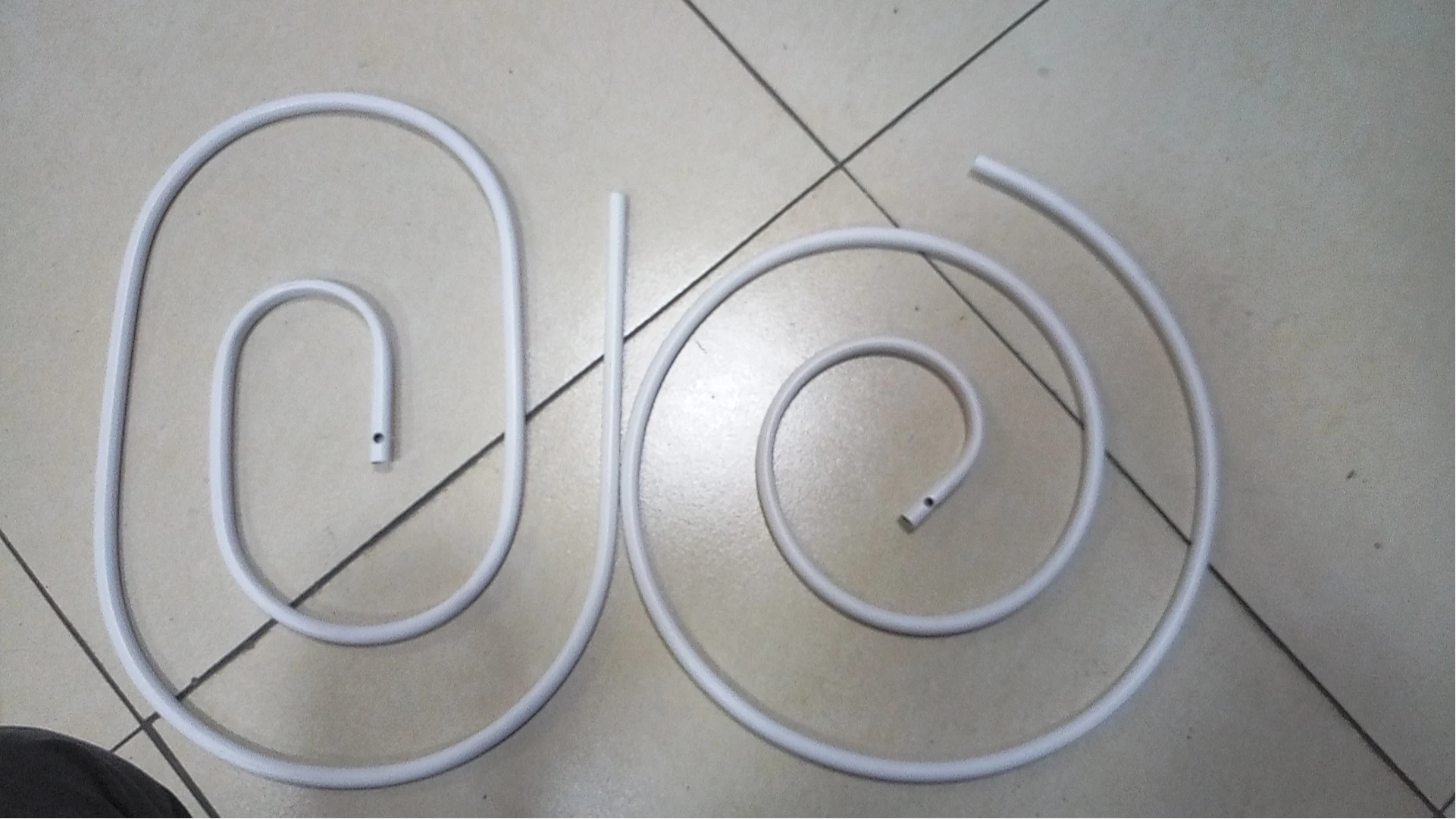

Wire bending machines are primarily used to process metal wires into two-dimensional or three-dimensional components, widely applied in fields such as hardware products, automotive parts, and medical devices. JCXLC’s range of wire bending machines, known for their high precision, versatility, and stability, have set the standard in the industry.



1.1 Diverse Model Options

JCXLC offers wire bending machines designed to meet various processing needs, from small wire diameters to large ones:

JC-60 Series: Ideal for wire diameters ranging from Φ2.0mm to Φ4.0mm, with a total power consumption of only 11.7KW, suitable for lightweight production.

JC-100 Series: Supports wire diameters from Φ3.0mm to Φ10.0mm, equipped with 9-axis servo motors, delivering a maximum wire feed speed of 40m/min, capable of completing complex 3D bends.

JC-120 Series: Designed for larger wire diameters from Φ3.0mm to Φ12.0mm, featuring a torsion head copper sleeve drive system that enhances stability by 30%, widely used in medical equipment and agricultural machinery parts production.



1.2 Key Features & Advantages

Precise Control: Utilizes the Yachi forming system and Japan’s Sanyo servo motors, with a wire feed precision of ±0.5mm and bending angle error of less than 0.1 degrees.

Multifunctional Integration: Some models support torsion head left-right deviation, front-back knife movement, and 360° rotation of wires, enabling fast switching for complex parts.

High Efficiency & Energy Savings: For example, the JC-121-16A model achieves a wire feed speed of 110m/min with an optimized power consumption of just 8.9KW, boosting production efficiency by 40%.



2. Welding Machines: The Key Equipment for Joining Processes

Welding machines are used for the fixed connection of metal wires and are commonly used in frame welding, spring manufacturing, and metal craft production. JCXLC’s welding equipment includes various technologies such as resistance welding, TIG welding, and medium-frequency welding, catering to the diverse needs of different industries.



2.1 Popular Welding Machine Types

Frame Spot Welder (JC-WK2D Series): Ideal for welding flat structures like frames and fan shapes, supports wire diameters from Φ2.0mm to Φ12.0mm, with a transformer power of up to 80KVA for smooth, burr-free welding joints.

TIG Welding Machine (JC-DQ Series): Uses TIG welding technology, suitable for welding stainless steel and precision components, providing high weld strength with a clean surface free of oxidation marks.

Flash Butt Welding Machine (JC-STT Series): Designed for wires with diameters below Φ6mm, offering high efficiency with a dual-head T-type welding setup, and featuring a water-cooling system for continuous operation over 8 hours.



2.2 Technological Innovations & Customer Benefits

Intelligent Control System: The touch screen interface supports one-click programming and stores up to 1000 sets of data, allowing production parameters to be easily recalled.

Energy Efficient & Environmentally Friendly: Replacing hydraulic cutting with servo motor cutting reduces noise by 50%, and no need to heat hydraulic oil in cold climates, reducing maintenance costs by 30%.

High Load Capacity: For example, the JC-HJ-P seam welder supports a maximum welding capacity of Φ6mm wire diameter with a continuous duty cycle of 50%, suitable for high-intensity, continuous operations.



3. How to Choose: Wire Bending Machine or Welding Machine?

When selecting equipment, businesses should consider the following factors:

3.1 Processing Requirements

Wire Forming: If you need to bend wire into specific shapes (such as hooks or frames), a wire bending machine is the choice. For instance, the JC-121-10A can process wires from Φ3.0mm to Φ10.0mm and is ideal for the furniture and lighting industries.

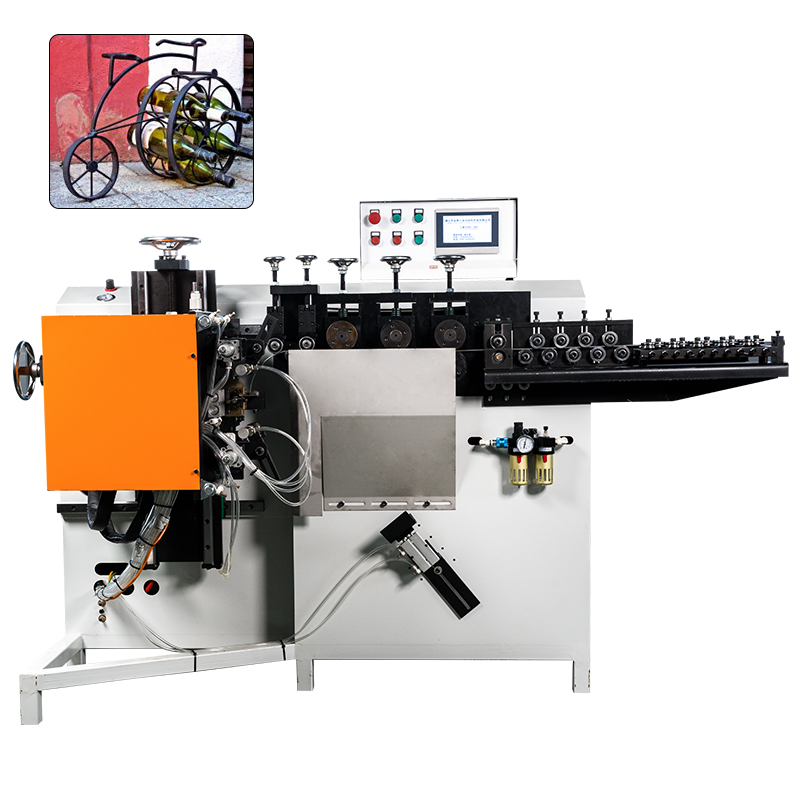

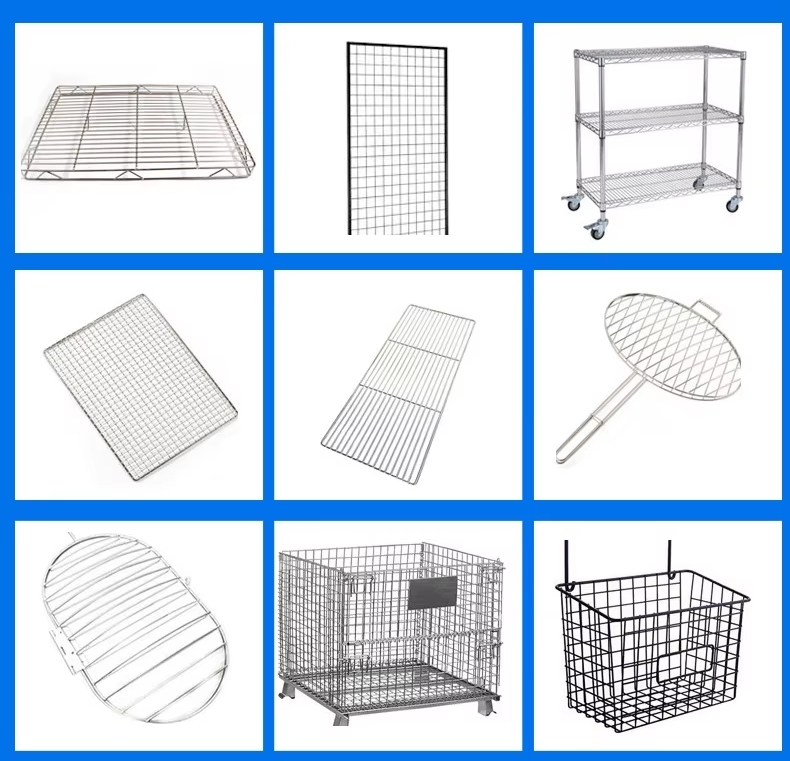

Fixed Connections: If you need to weld wire into structural parts (like shelves or mesh panels), a welding machine is the better option. The JC-DQ-H3 ring welding machine can complete both ring forming and welding in one step, improving efficiency by 50%.



3.2 Material Properties

Soft Wire Materials (such as copper, aluminum): TIG or medium-frequency welding is recommended to avoid material oxidation.

Hard Wire Materials (such as stainless steel or spring steel): Resistance welding or flash butt welding is more suitable to ensure strong weld points.



3.3 Production Scale

Small-Batch Customization: Choose a versatile wire bending machine (such as the JC-70 Series) for quick mold switching to accommodate diverse orders.

Mass Production: Prioritize high-speed machines like the JC-100-9A wire bending machine (with a feed speed of 40m/min) or the JC-HJ-D seam welder (with a working arm length of 1800mm).



4. JCXLC's Core Competencies

As a manufacturer with 23 years of experience in the automation equipment sector, JCXLC has earned customer trust through the following advantages:

Leading Technology: Self-developed Yachi forming system and 3D wave box technology, with precision up to ±0.2mm, exceeding industry standards.

Comprehensive Service: Offering a one-stop solution from equipment customization and installation to lifetime after-sales service, with nationwide service coverage of 90%.

Customer Testimonials: Products exported to over 30 countries, with clients including multinational companies like Mercedes-Benz and Siemens, and a market share of over 70% in the wire bending machine sector.



Conclusion

Wire bending machines and welding machines are both crucial pieces of equipment in industrial manufacturing, each with irreplaceable roles. Businesses need to select the most suitable solution based on product characteristics, production scale, and technical requirements. With 23 years of technical expertise, JCXLC provides end-to-end solutions from bending to welding, helping the manufacturing industry improve quality and efficiency. For more information on our equipment or to receive a customized solution, feel free to contact JCXLC Industrial.
